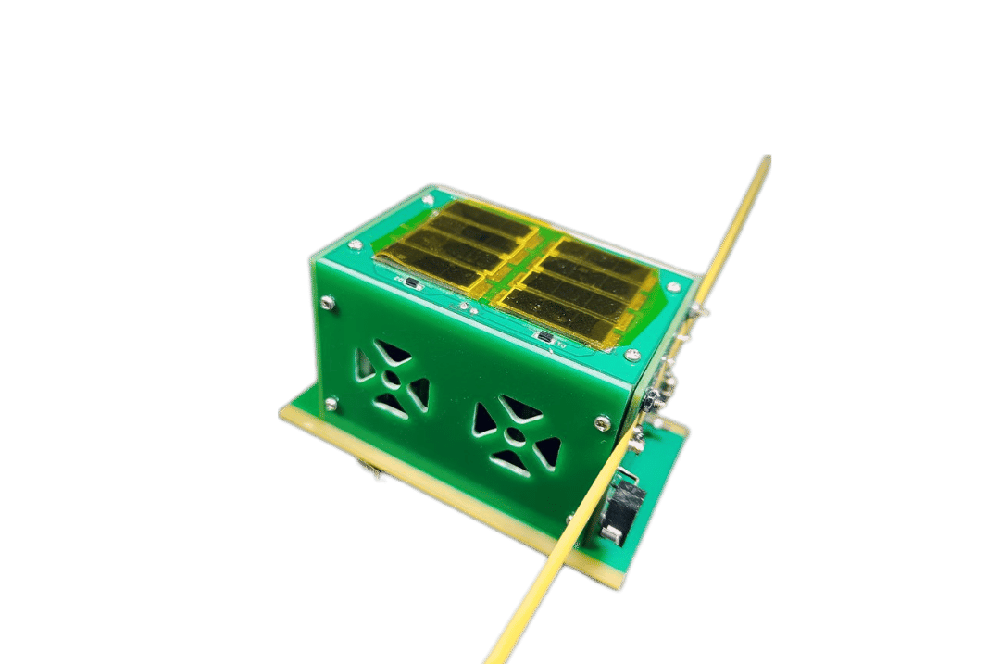

Pocket Cube Training Kit

A pocketqube is a satellite which has a dimension of 5x5x5 cm and weighs less than 250 grams. PikoQube is based on the design of Sanosat-1 designed by ORION Space which was launched on Jan 2022 via SpaceX.

It is based on the form factor of PocketQube.
Introduction to PocketQube
A pocketqube is a satellite which has a dimension of 5x5x5 cm and weighs less than 250 grams. PikoQube is based on the design of Sanosat-1 designed by ORION Space which was launched on Jan 2022 via SpaceX.

PikoQube PocketQube Kit
It is a 5x5x75mm satellite on the form factor of a 1.5P PocketQube. One of the side is covered by solar panel. It consists of 4 PCBs EPS, OBC, COM and Payload inside and Solar Panels, Base Plate and other panels the make up the structure of the PocketQube.

Subsystems
EPS: Its function is the boost the voltage from the solar panel to charge a single cell Li-ion battery. It also monitors the current and voltage that charges the battery.
OBC: It is powered by ATMEGA328 Microcontroller and also consists of built in programmer. A usb cable can be used to program it via arduino platform.
Communication: It consists of Si446x based communication module that supports CW, FSK and GFSK Modulation.
Payload: The payload consists of basic sensors like accelerometer, gyroscope, temperature sensor and pressure sensor.
Software Defined Radio
Contents
Following components will be sent once you order the PikoQube Kit.

Electrical Power Subsystem Board
On-Board Computer Board
Communication Board
Payload Board
Antenna Panel
Base Panel Board
Side Panel x 2
Back Panel PCB
Solar Panel PCB
Battery Casing 3D Printed
Top Casing 3D Printed
USB Cable
RTL-SDR
Note: Due to shipping restrictions we are unable to ship battries. However we will send the link as well as the specs that is needed for the battery and you can get the battery from other vendors.
